H-ICS-7627-97 PROCESS CONTROLLER

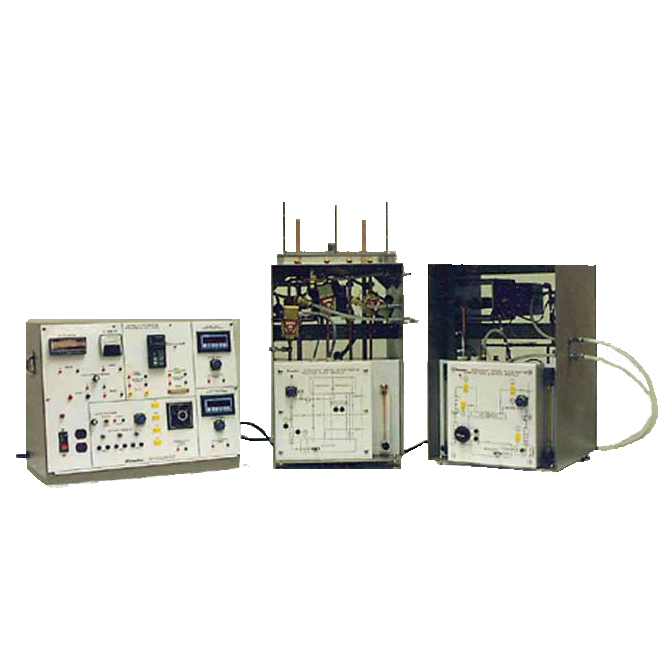

The Hampden Model H-ICS-7627-97 Process Controller has Advanced PID control, auto-tuning with feed-forward circuitry providing fast, stable response. (H-ICS-7627-10, -20, -60 is shown)

INSTRUMENTATION AND PROCESS CONTROL

Table Top Instrumentation and Controls Modular Program

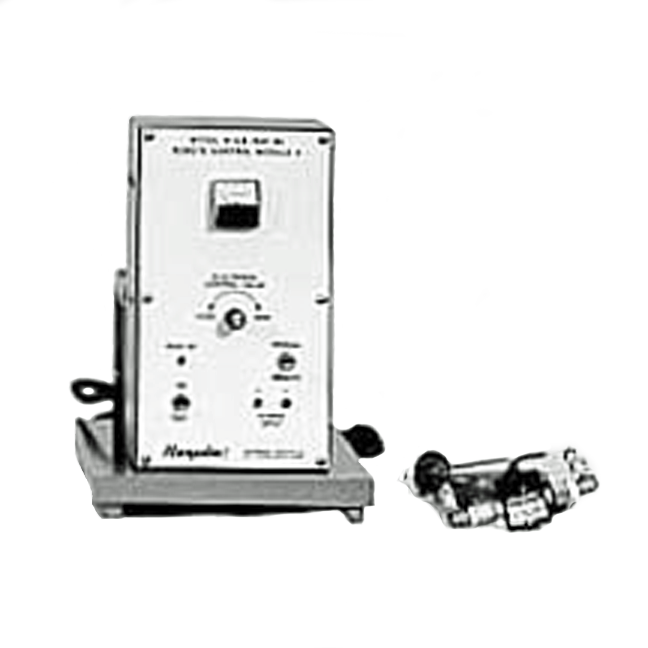

H-ICS-7627-90 REMOTE CONTROL ACCESSORY PACKAGE

The Hampden Model H-ICS-7627-90 Remote Control Module consists of the following add-on components: Flow transducer with interface cable, electronic control valve module with ON-OFF switch, power supply, manual control or remote control functions.

DATA FILE

H-ICS-7627-21 CONTROL PANEL MODULE

The Hampden Model H-ICS-7627-21 Control Panel Module consists of the following features: Ground fault main circuit breaker, signal source (4-20mA), control valve interface, control circuits interface, 24V. DC power supply, Hampden HR-1S color coded socket receptacle , Hampden interface receptacle. (H-ICS-7627-10, -20, -60 shown)

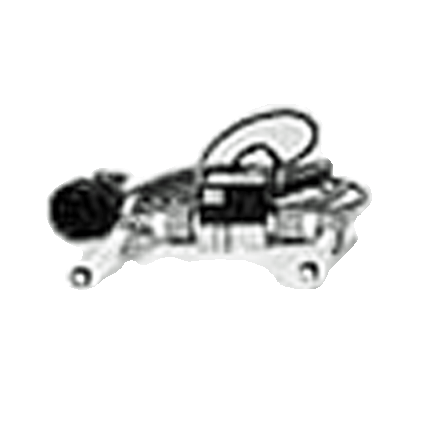

H-ICS-7627-30 FLOW CONTROL MODULE

The Hampden Model H-ICS-7627-30 Flow Control Module consists of the following items: Flow transmitter with interface cable and connector and Interface hose set.

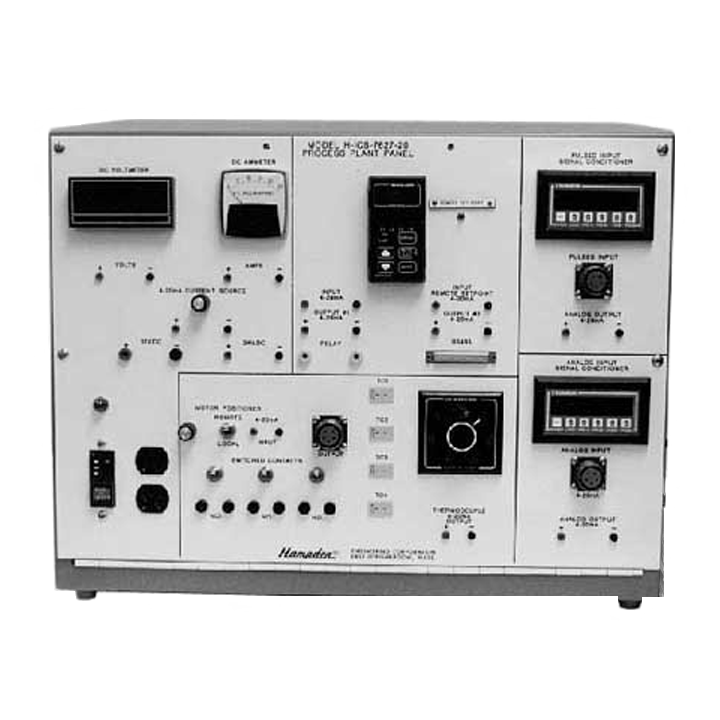

H-ICS-7627-20 CONTROL PANEL MODULE

The Hampden Model H-ICS-7627-20 Control Panel Module consists of the following features: Microprocessor single-loop system (PID) w/ two 4-20mA outputs, one relay output, two 4-20mA inputs and one RS-485 port, digital voltmeter, analog ammeter, digital pulsed input signal conditioner with 4-20mA output, digital analog input signal conditioner with 4-20mA output, 4-20mA signal source, motor control positioner, 4-20mA, voltage switched output control (120V(240V) and 24V), ground fault main circuit breaker, lot of Hampden HR-1S color coded socket receptacles, lot of Hampden MPP-3 mini-plug cords, thermocouple inputs with selector switch and 4-20mA transmitter.

DATA FILE

H-ICS-7627-11 PROCESS PLANT MODULE

The Hampden Model H-ICS-7627-11 Process Plant Module consists of the same components as the H-ICS-7627-10 except configured with base and back support panel. (H-ICS-7627-10, -20, -60 are shown)

DATA FILE

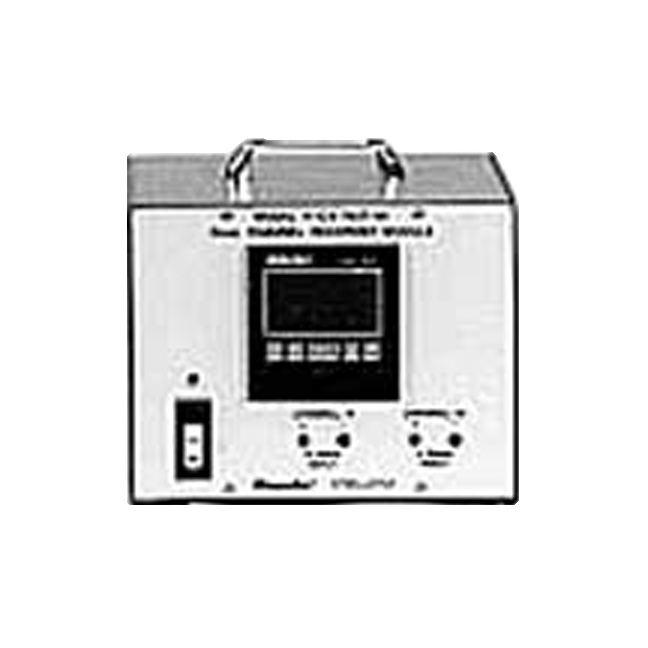

H-ICS-7627-80 DUAL CHANNEL RECORDER MODULE

The Hampden Model H-ICS-7627-80 Dual Channel Recorder Module consists of the following components: Paperless two channel recorder/data acquisition system module with enclosure, circuit breaker, Hampden HR-1S socket receptacles and power cord, memory card, card reader, power supply and software for IBM PC. (computer not included)

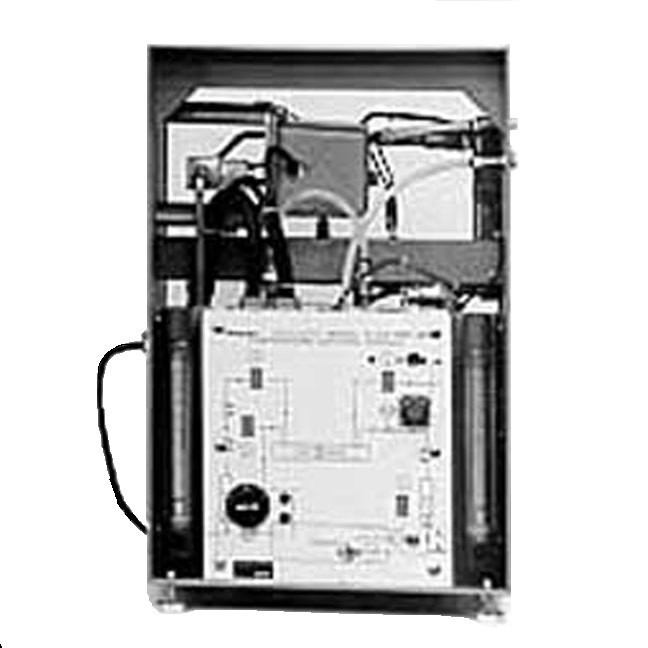

H-ICS-7627-60 TEMPERATURE CONTROL MODULE - WATER

The Hampden Model H-ICS-7627-60 Temperature Control Module consists of the following components: Steel frame assembly with feet, flowmeters with needle valves, thermocouples type T, stainless steel tank with drain valve (1500 and 750 watt heater elements), level switch, control valve - electronic with stepper motor, thermostat, heat exchanger (plate type), pump, lot of Interface pipe and associated connectors.

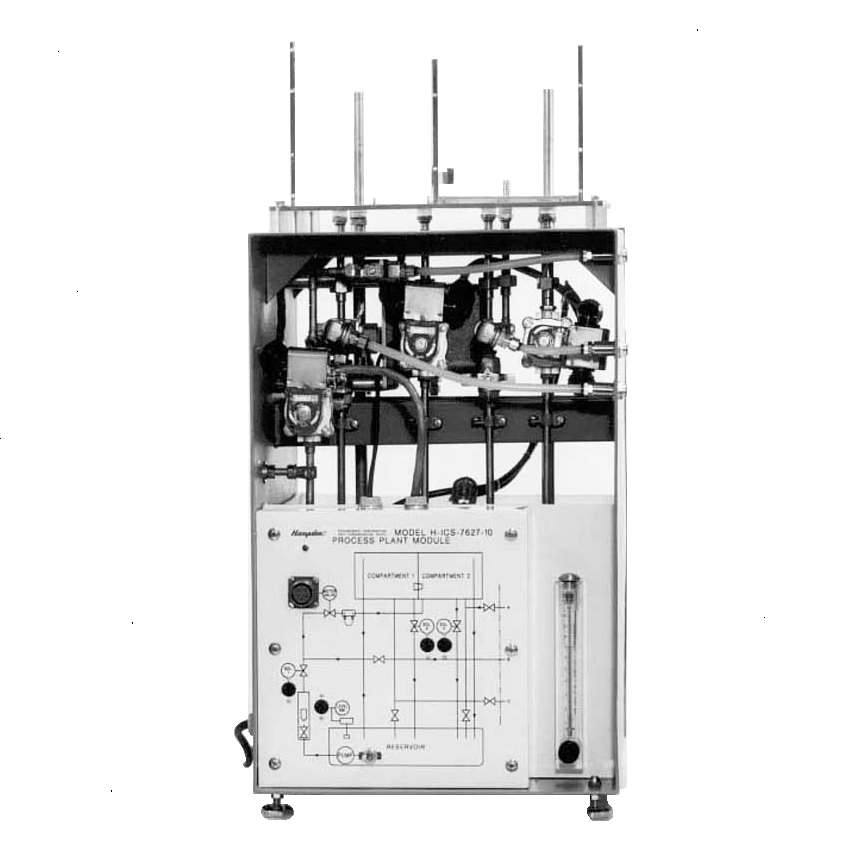

H-ICS-7627-10 PROCESS PLANT MODULE

The Hampden Model H-ICS-7627-10 Process Plant Module consists of a steel frame assembly with feet, Nalgene storage tank with drain valve and level switch, pump, flowmeter with needle valve, solenoid valves, clear Lexan dual process tank with overflow, control valve (electronic with stepper motor), flow control module interface, ball valves, interface self-seal fittings and hoses.

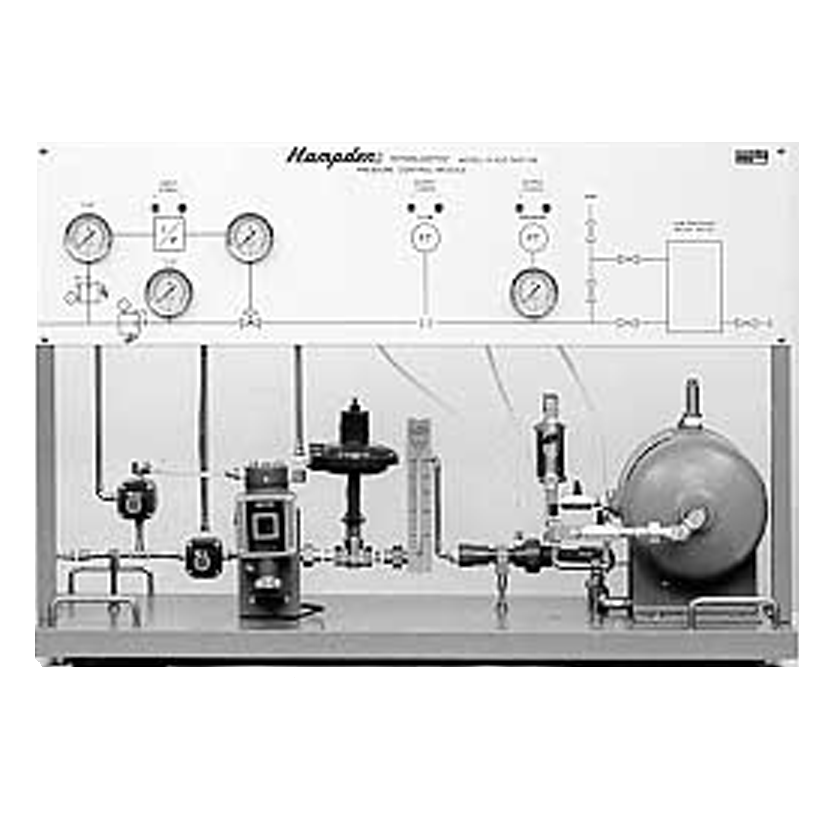

H-ICS-7627-50 PRESSURE CONTROL MODULE

The Hampden Model H-ICS-7627-50 Pressure Control Module consists of a rack with the following components: Bench top frame with control panel four levelers and four handles, pressure gauges, dual scale in psi/kPa, air pressure regulators, I/P converter, pneumatic control valve, differential pressure transmitter, pressure transmitter, pressure tank with safety relief valve , orifice plate assembly, air exhaust muffler, ball valves, Hampden HR-1S socket receptacles, lot process copper pipe 1/4."

BACK TO INSTRUMENTATION & PROCESS CONTROL

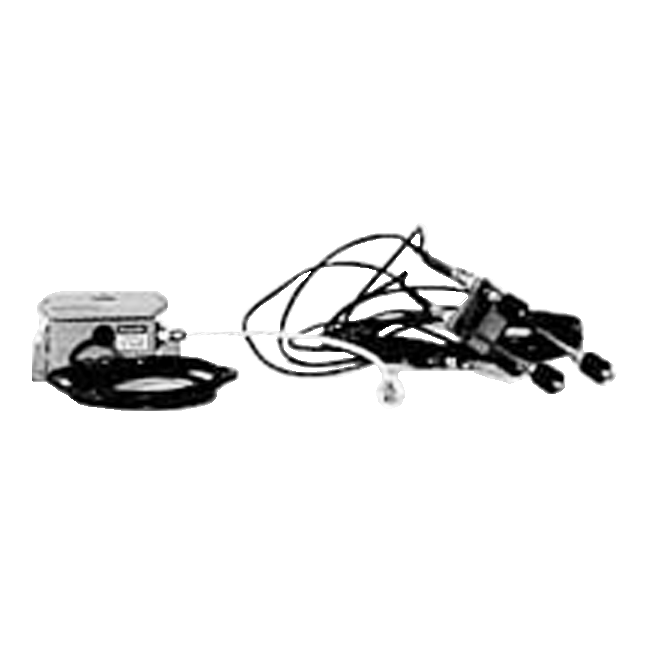

H-ICS-7627-40 LEVEL CONTROL MODULE

The Hampden Model H-ICS-7627-40 Level Control Module consists of the following components: Dual two level adjustable float switches complete with interface plugs, level differential pressure transmitter with interconnection hoses and interface plug.

DATA FILE

DATA FILE

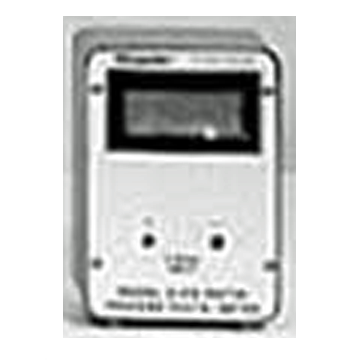

H-ICS-7627-91 PROCESS DIGITAL METER

The Hampden Model H-ICS-7627-91 Process Digital Meter consists of a loop powered 3-1/2" digit digital meter with enclosure and two interface receptacles.

HAMPDEN ENGINEERING CORPORATION

sales@hampden.com

P.O. Box 563

East Longmeadow, MA 01028

(Toll Free) 800-253-2133 or 888-HEC-CORP

Local: 413-525-3981

Fax: 413-525-4741

DATA FILE

H-ICS-7627-70 PH CONTROL MODULE

The Hampden Model H-ICS-7627-70 pH Control Module consists of the following components: Steel frame assembly with feet, flowmeters, feed pumps, dual stainless steel tank with drains, process tank with drain, mixer, solenoid valve, control valve (electronic), pH electrode (dip type), pH transmitter (4-20mA), lot of Interface pipe connectors. (H-ICS-10, -20, -60 shown)
