MACHINES - DCG-300 DC GENERATOR

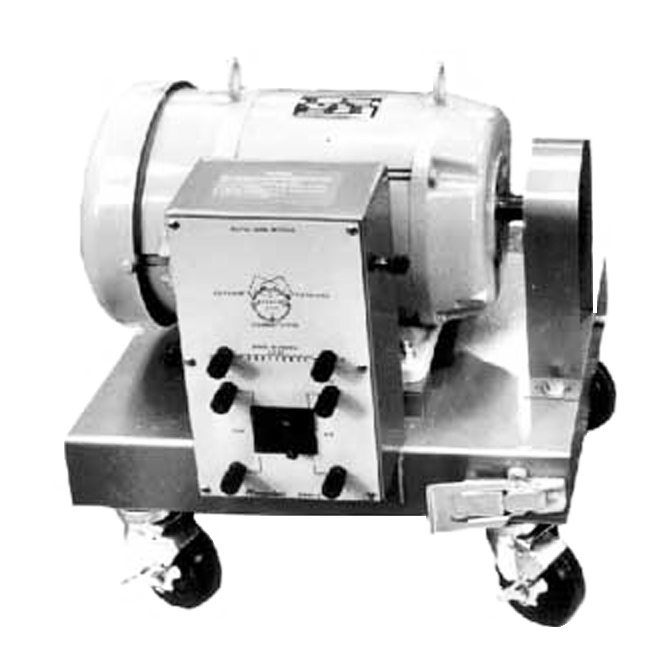

The Hampden Model DCG-300 is a four-pole, compound-wound machine having a shunt field winding, a series field winding, and an armature with commutator and brushes. (Shown is the DM-300 DC Machine)

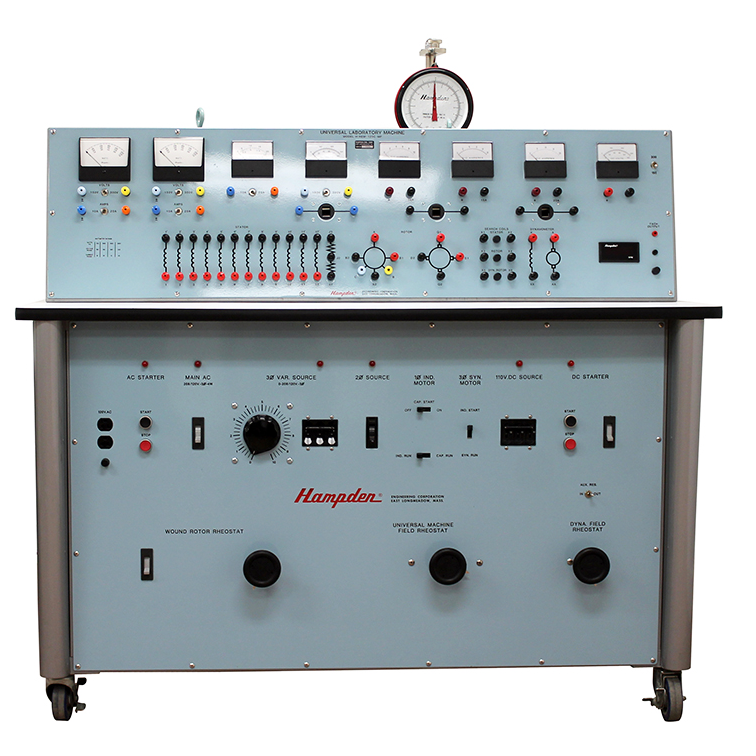

H-REM-120CM-MP HAMPDEN UNIVERSAL LABORATORY MACHINE

This unit shall consist of a Universal Laboratory AC/DC Machine set and mobile equipment console. The lower part of this console to be enclosed and house all necessary accessory apparatus, starting, control, loading, and power supply for the machine set.
Options:
H-REM-120CM-MP-CDLC Universal Laboratory Machine with Computer Data Logging and Control
H-REM-CS Computer System

DATA FILE

MACHINES - MPB-300 MAGNETIC PARTICLE BRAKE

The principle component of the MPB-300 is the magnetic particle brake. The machine is used as a motor load or generator.

DATA FILE

MACHINES - IM-300 SQUIRREL CAGE INDUCTION MOTOR

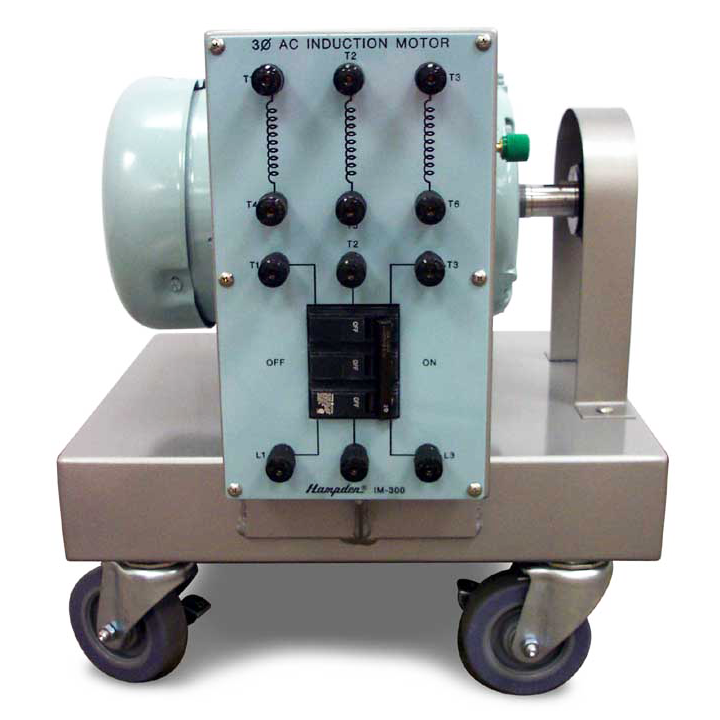

The Hampden Model IM-300 is effective in demonstrating the principles and operation of a typical single-speed squirrel-cage induction motor.

HMIL-4.2 MOBILE INDUCTANCE LOAD CART

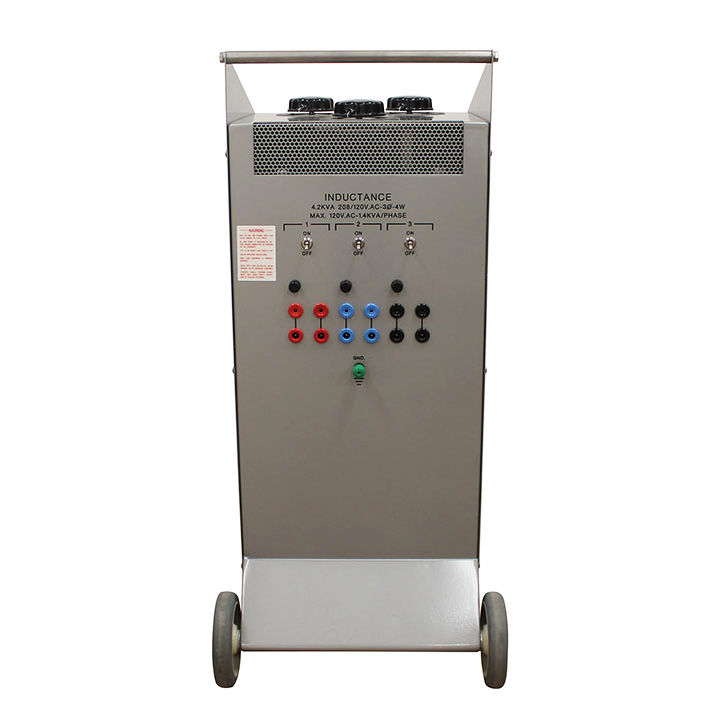

The Hampden Model HMIL-4.2 Mobile Inductance Load Cart is designed to provide a suitable inductance load for use with REM Series AC Generators.

THREE HORSEPOWER AC AND DC STARTERS

The following AC and DC Starters are found in the 300 Series:

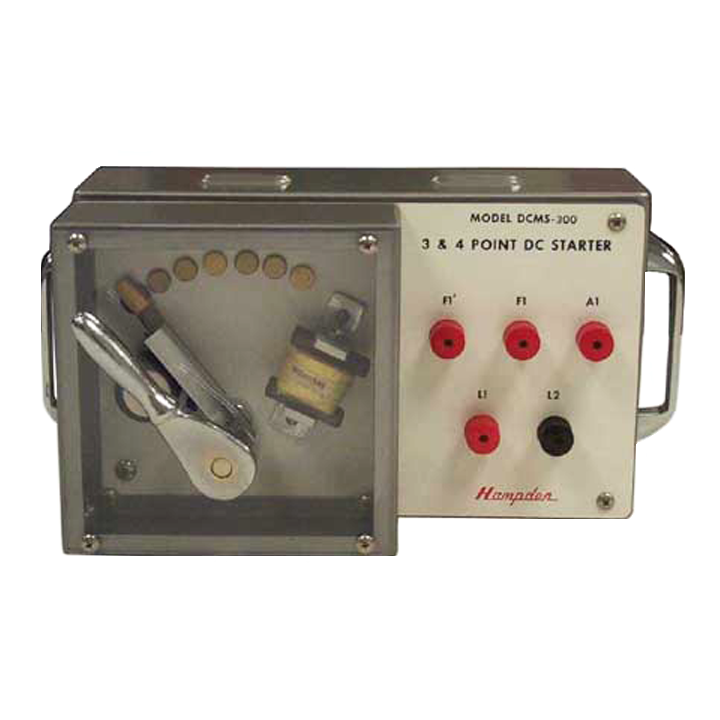

DC-MS-300 DC Manual Starter (shown)
DC-AS-300B DC Automatic Starter
MS-300-3A AC Magnetic Starter
MS-300-YD Wye/Delta Starter
MS-300-DS Drum Switch Manual Starter (AC and DC)
ACAS-SM-300-2RA Synchronous Motor Starter
ACRS-300-C Reduced Voltage Two-step Resistance Starter

MACHINES - RSIM-300 REPULSION START INDUCTION MOTOR

DATA FILE

MACHINES - IM-300-4 INDUCTION MOTOR

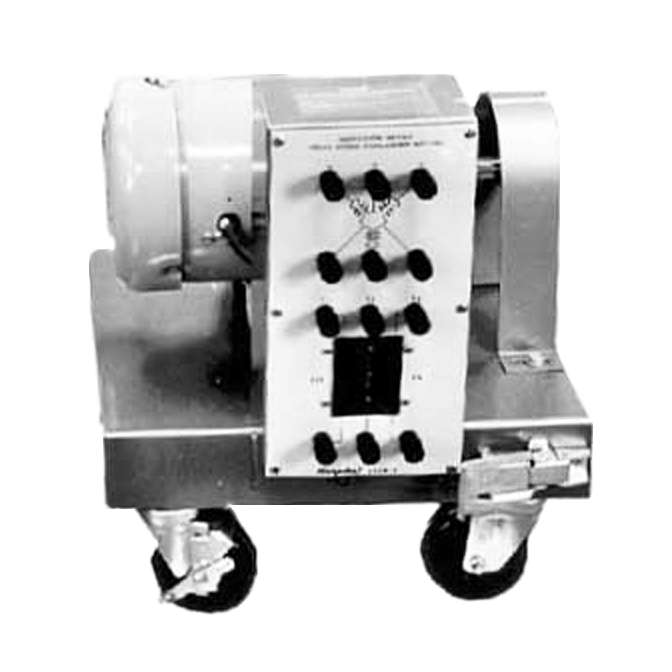

The Hampden Model IM-300-4 is a three-phase, 12-pole, squirrel-cage motor with a wound stator, and squirrel-cage rotor. A 3-pole circuit breaker is provided in the terminal box. (Shown is the IM-300 Squirrel Cage Induction Motor)

ROTATING MACHINES

Series 300 - 3HP System

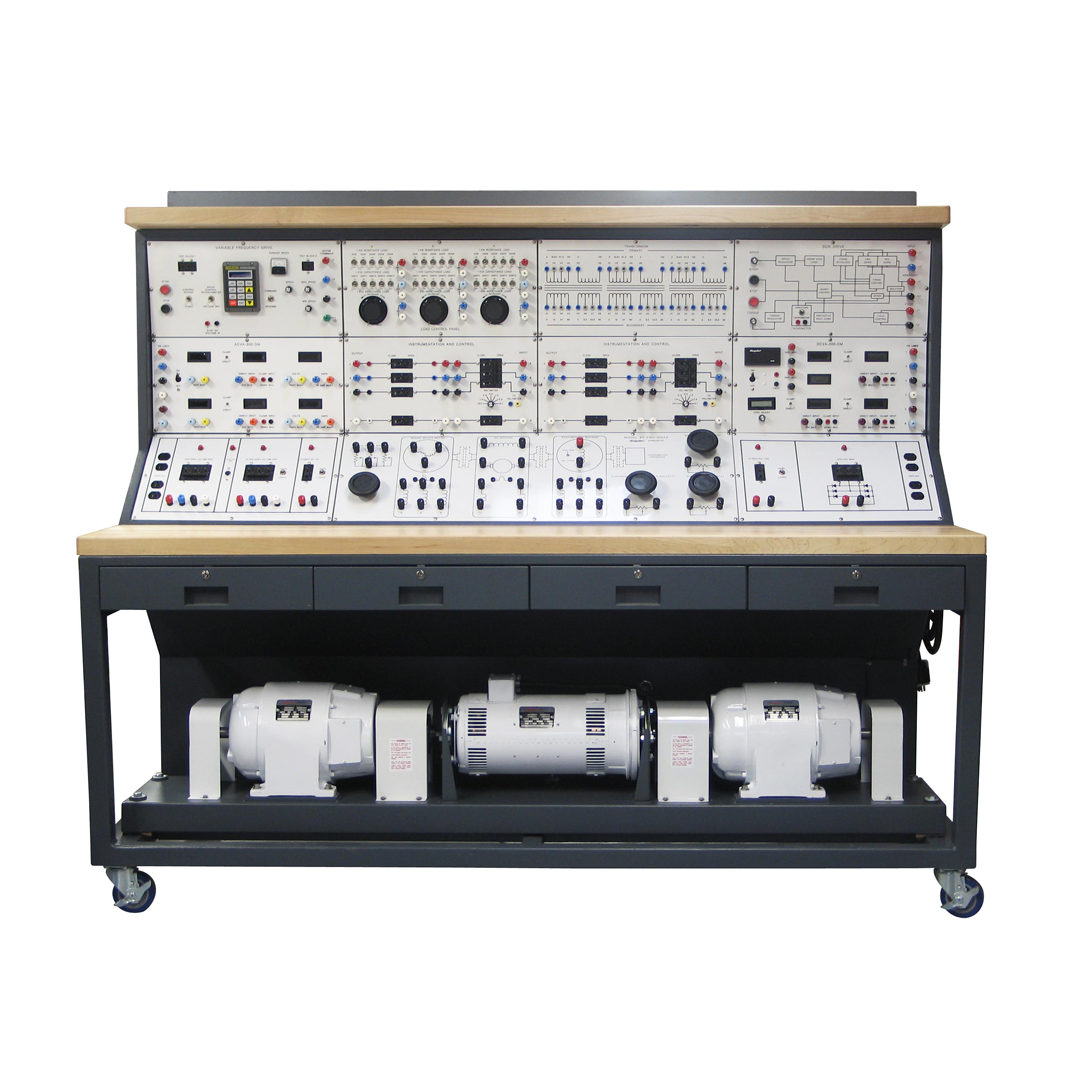

H-EWC-300AX ROTATING MACHINE MOBILE CONSOLE

The Hampden Model H-EWC-300AX Rotating Machine Mobile Console brings all the facilities required for a complete motors study program into one mobile console. Built around the Hampden series of 300HP machines, the console adds:
Options:
AC Metering
DC Metering
VFD Controls
SCR Controls. Resistive Loading
Reactive Loading
Capacitive Loading
Inductive Loading
Transformers

H-MGI-REM MOTOR-GENERATOR INTERFACE MODULE WITH I/O PACKAGE

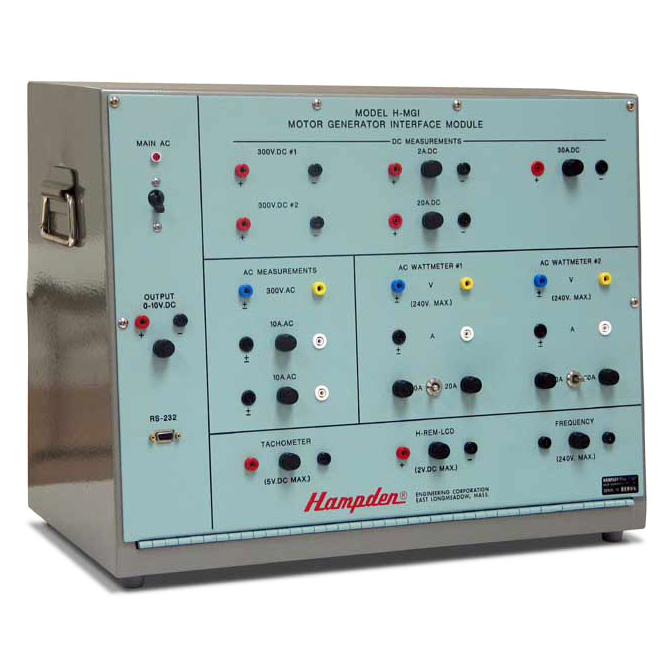

The Hampden Model H-MGI-REM Motor-Generator Interface package provides an all-in-one solution for interfacing H-REM-120, H-REM-1A, Series 2 2HP motors, Series 3 3HP motors with computers.

DATA FILE

MACHINES - DSDM-300 DAHLANDER MOTOR

The Hampden Model DSDM-300 is a dual speed Dahlander motor with a six lead connected stator winding wired to terminals located within a schematic diagrammed area located on the front of a terminal panel mounted on a totally enclosed terminal box attached to the machine base.

DATA FILE

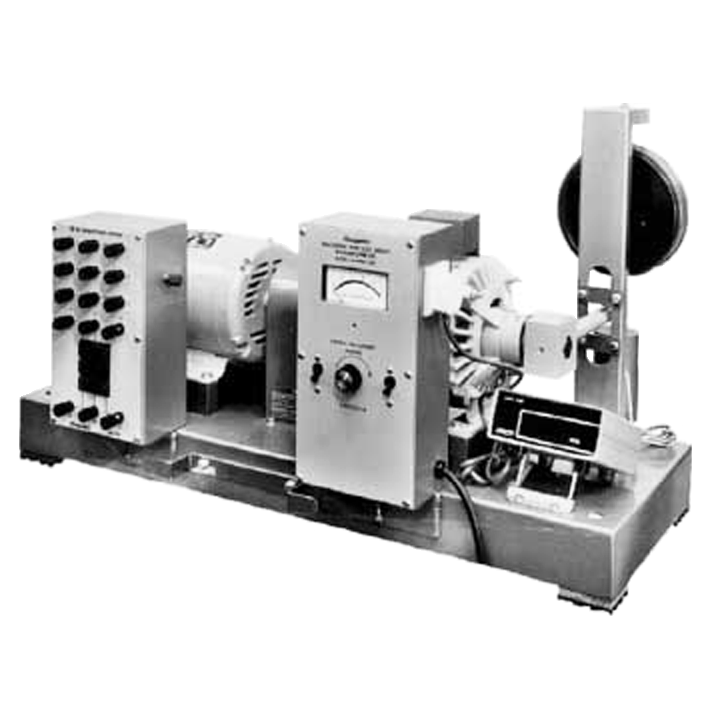

H-REM-LC-D LOAD CELL WITH DIGITAL READOUT

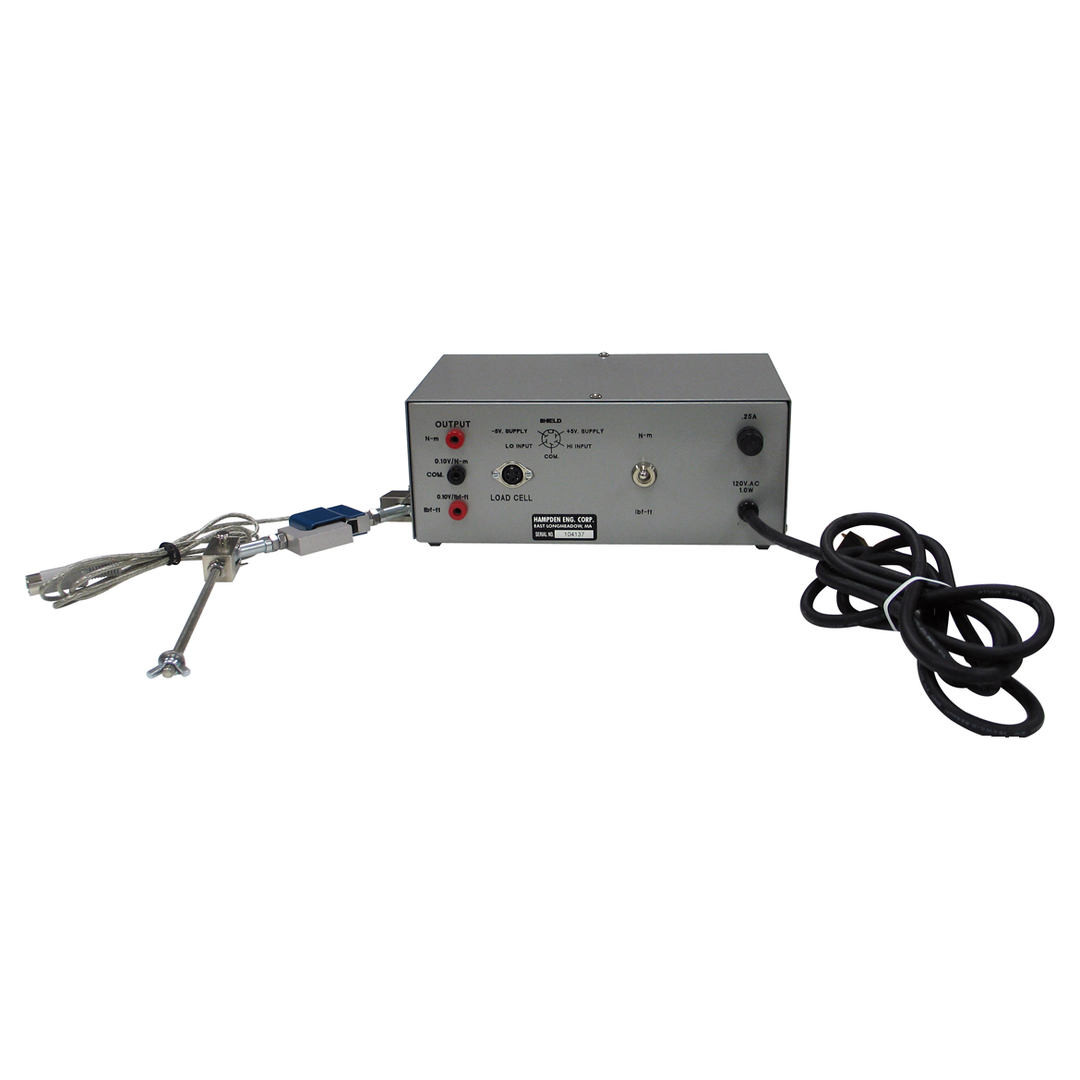

The Hampden Model H-REM-LC-D Load Cell is designed to be used with any standard Hampden dynamometer, replacing the circular scale. The signal conditioner measures and displays torque on a digital read-out. Two separate amplifiers are used to permit torque measurements in either English units (lb-ft) or SI units (N-m). Separate analog output (0-5V DC) is available via Hampden HR-1S receptacles on the rear of the unit.

DATA FILE

MACHINES - DYN-300 ELECTRODYNAMOMETER

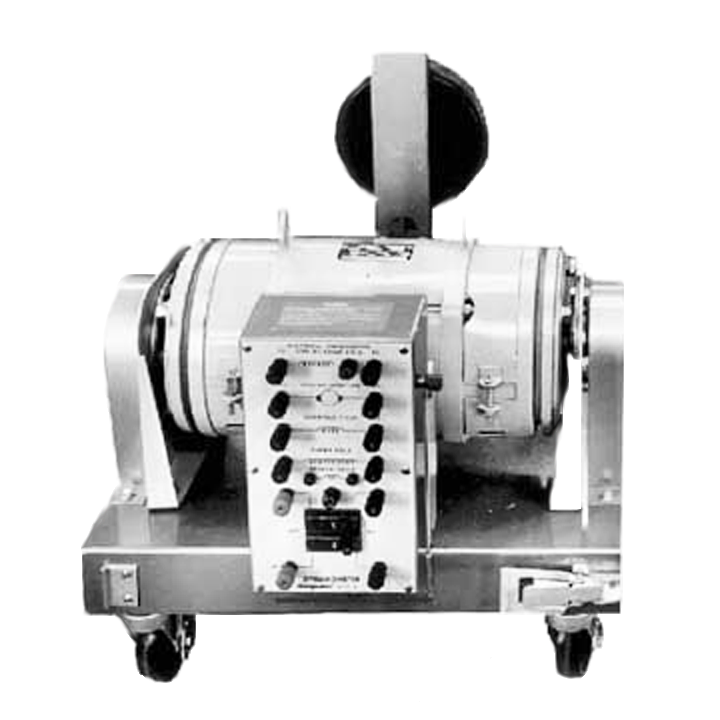

The Hampden Model DYN-300 Dynamometer is a two-pole, compound wound DC machine. Its frame is mounted on bearings and attached by means of a 12 inch lever arm, to a spring scale. The scale is pre-loaded using a weight to its zero-center position. The torque developed by the machine is indicated directly in foot-pounds on the scale.

THREE HORSEPOWER SWITCHES AND MISCELLANEOUS

The following are used with the Series 300 machines, contollers, and accessories:
H-SD-3PS Wye/Delta Switch
H-RS-3PSTCO Reversing Switch
H-LS-3PST Load Switch
SYN-300-A Synchronizing Switch
H-PSC-DM-3 Pole Changing Switch
DC-ARC-300A DC armature Resistance Controller

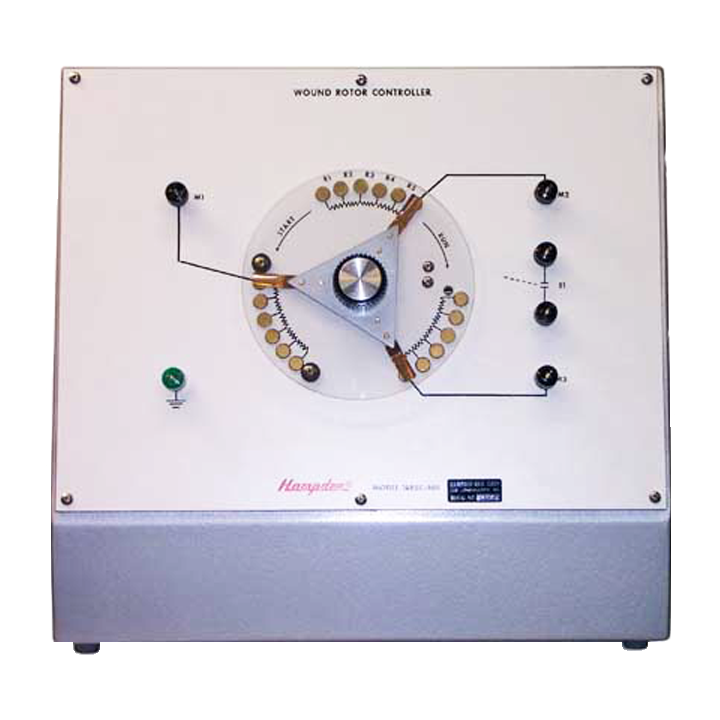

WRSC-300 Wound Rotor Speed Controller (shown)
WRSC-300R Wound Rotor Speed Controller - Rheostat type
SFR-300 Series Field Diverter
SFR-300B Shunt Field Rheostat
T/OS-300A Tachometer and Generator
H-REM-LC-D Load Cell

DATA FILE

MACHINES - SM-300 SYNCHRONOUS MACHINE

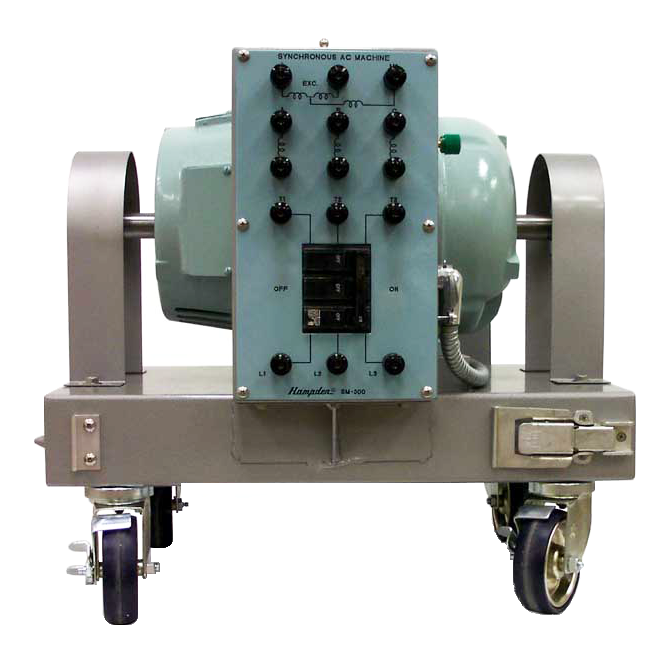

The Hampden Model SM-300 is a three-phase four-pole synchronous motor/alternator of the stationary armature type. The stator winding (which may be connected wye or delta), as well as the DC field windings, terminate at binding posts on the schematic-diagrammed terminal panel.

POWER AND INSTRUMENTATION SERIES 300 MODULES

The Hampden Series 300 Modules in the Power and Instrumentation section are as follows:
HMR-22016 AC/DC Power Supply
ACVA-300 AC Voltmeter and Ammeter Module
DCVA-300 DC Voltmeter and Ammeter Module

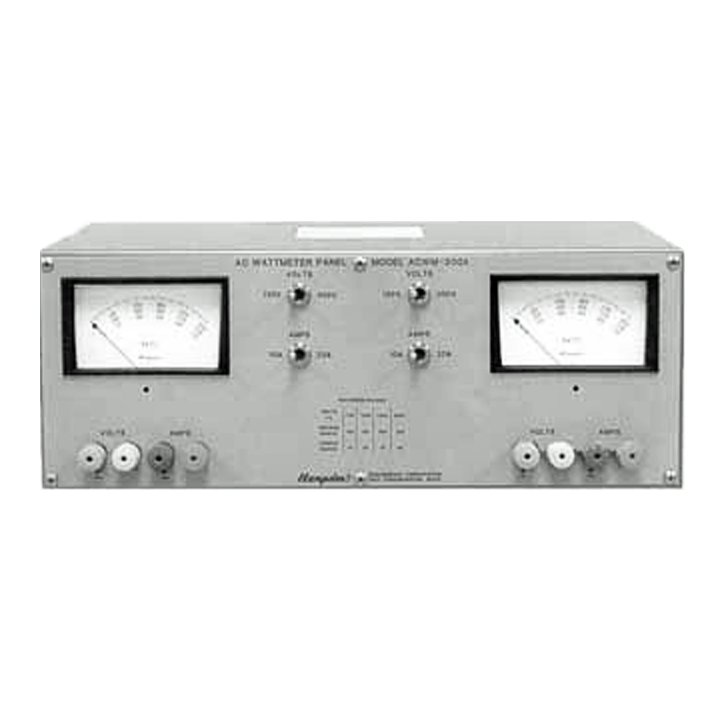

ACWM-300A AC Wattmeter Module 1Ø and 3Ø (shown)
ACWM-3Ø-Y AC Wattmeter Module 3Ø
AC3A-300 AC Ammeter Module (3 meters)
AC3V-300 AC Voltmeter Module (3 meters)
H-PAM-300 Phase Angle Meter Module
ACS-3 Synchroscope Module
ACHZ-120/240 Frequency Meter Module (dual voltage)
AC-VAR-3 Varmeter Module
H-PFM-300 Power Factor Meter Module.

DATA FILE

MACHINES - WRM-300 WOUND ROTOR MOTOR

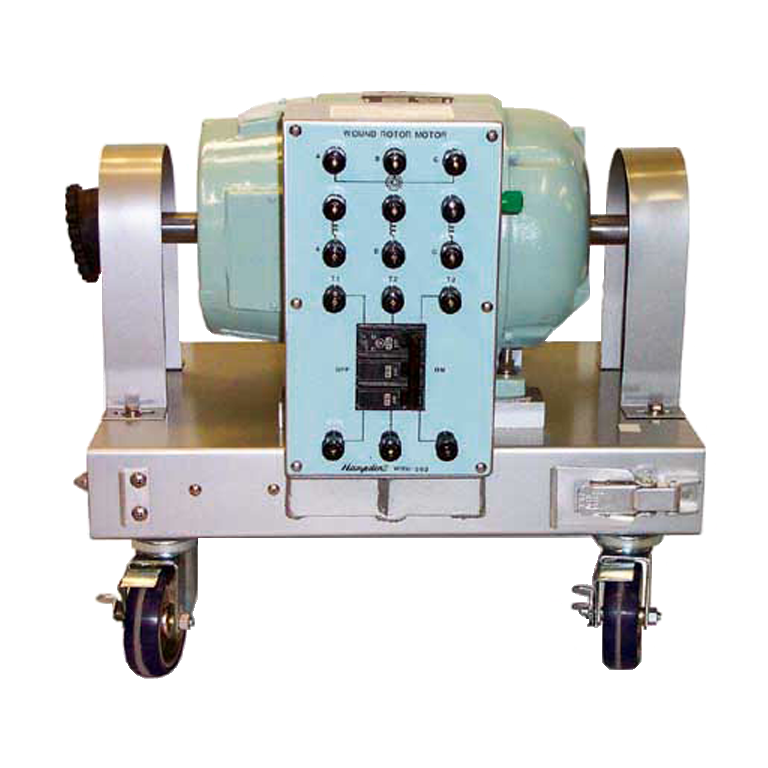

The Hampden Model WRM-300 is a three-phase, four pole, wound-rotor motor consisting of a stator winding and a rotor winding with slip rings and brushes. A three-pole circuit breaker is also provided in the terminal box.

DATA FILE

HMCL-4.2 MOBILE CAPACITANCE LOAD CART

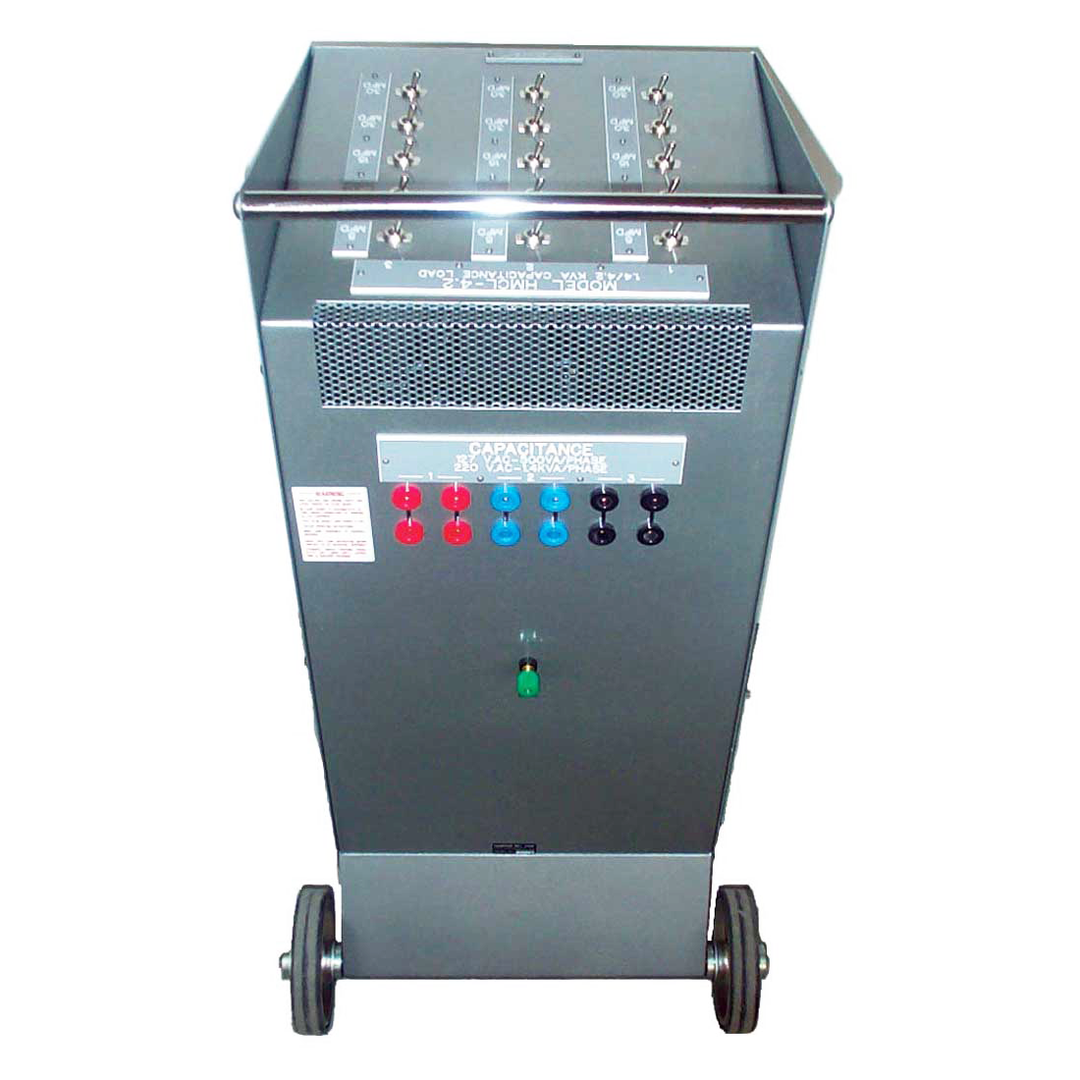

The Hampden Model HMCL-4.2 Mobile Capacitance Load Cart is designed to provide a suitable capacitance load for use with REM Series AC Generators.

MACHINES - DCM-300 DC MOTOR

The Hampden Model DCM-300 is a two-pole compensated compound-wound machine consisting of shunt field, a series field, an armature winding and an interpole winding. (Shown is the DM-300 DC Machine)

DATA FILE

HAMPDEN ENGINEERING CORPORATION

sales@hampden.com

P.O. Box 563

East Longmeadow, MA 01028

(Toll Free) 800-253-2133 or 888-HEC-CORP

Local: 413-525-3981

Fax: 413-525-4741

HPT-100A DIGITAL PHOTO TACHOMETER - PORTABLE

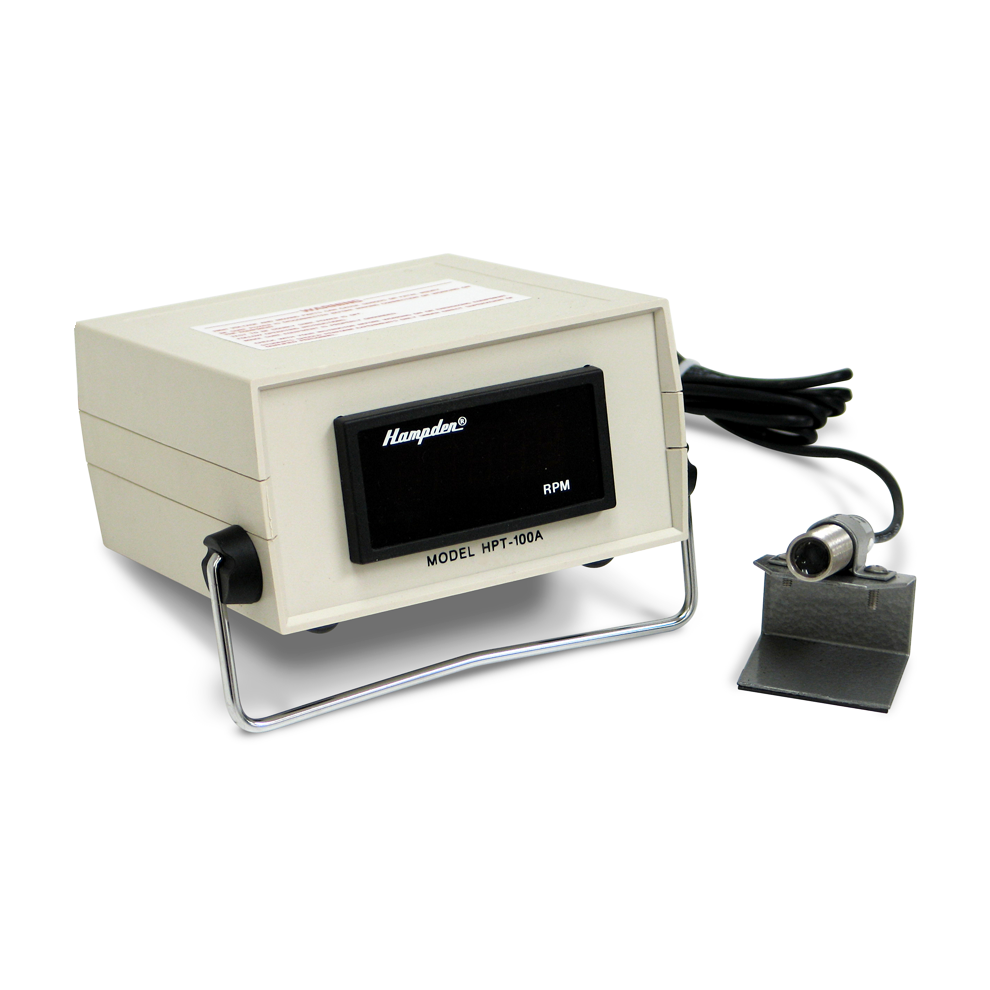

The Hampden Model HPT-100A Photo-Tachometer is a reflective speed sensor that has a range of 50 to 10,000 RPM. It is housed in a plastic case, which is provided with a retractable tilt stand to permit easy viewing.

DATA FILE

MACHINES - DM-300 DC MACHINE

The Hampden Model DM-300 is a two-pole compensated compound-wound machine consisting of a shunt field, a series field, an armature winding and an interpole winding. A two-pole protective circuit breaker is provided in the terminal box. Both the shunt field and search coils are fuse-protected, with the fuses located on the terminal panel.

THREE HORSEPOWER LOADS AND LOAD CARTS

The following are used with the 300 Series for loading:
Options:
HMRL-4.2 Resistance Load Cart (shown)
HMIL-4.2 Inductance Load Cart
HMCL-4.2 Capacitance Load Cart
RL-300-IM Resistance Load
IL-300-IM Inductance Load
CL-300-IM Capacitance Load
PB-300 Prony Brake
VIL-300 Variable Inertia Load

DATA FILE

BACK TO ROTATING MACHINES

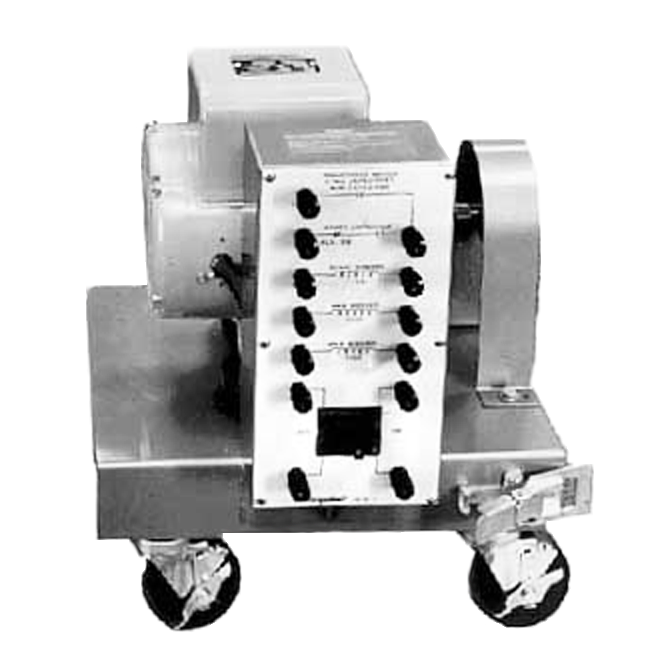

MACHINES - MFM-300 TWO-VALVE CAPACITANCE MOTOR

The Hampden Model MFM-300 is basically a four-pole, single-phase, split-phase motor consisting of a main winding, a starting winding, a centrifugal switch, and a squirrel-cage rotor. With the addition of the starting resistor, the starting capacitor, and the permanent capacitor, it is possible to operate the MFM-300 as a capacitor start motor, a two-value capacitor motor, or a split-phase motor. Mounted on the motor is a thermal cutout switch. If an overload occurs the button will pop up. Remove the cause of the overload and, after the motor cools, depress the button to reset the switch.
